The MG400 is a small robotic arm designed for desktop use, which is even smaller than a sheet of A4 paper. It emphasizes safety when working with humans, provides easy operation, and can be quickly deployed, making it an excellent choice for automating small-scale and flexible production tasks. With a maximum weight capacity of 750 grams and a reach of up to 440 millimeters, as well as features like drag-to-teach programming and collision detection, the MG400 offers a cost-effective solution for smart automation projects.

The MG400 comes with a user-friendly interface that simplifies programming and control. It offers multiple programming options, including a graphical interface for intuitive operation, scripting using languages like LUA, and compatibility with various APIs such as C, C#, Python, Kotlin, and more. This versatility enables users to program and customize the robot's actions according to their specific needs and workflow requirements.

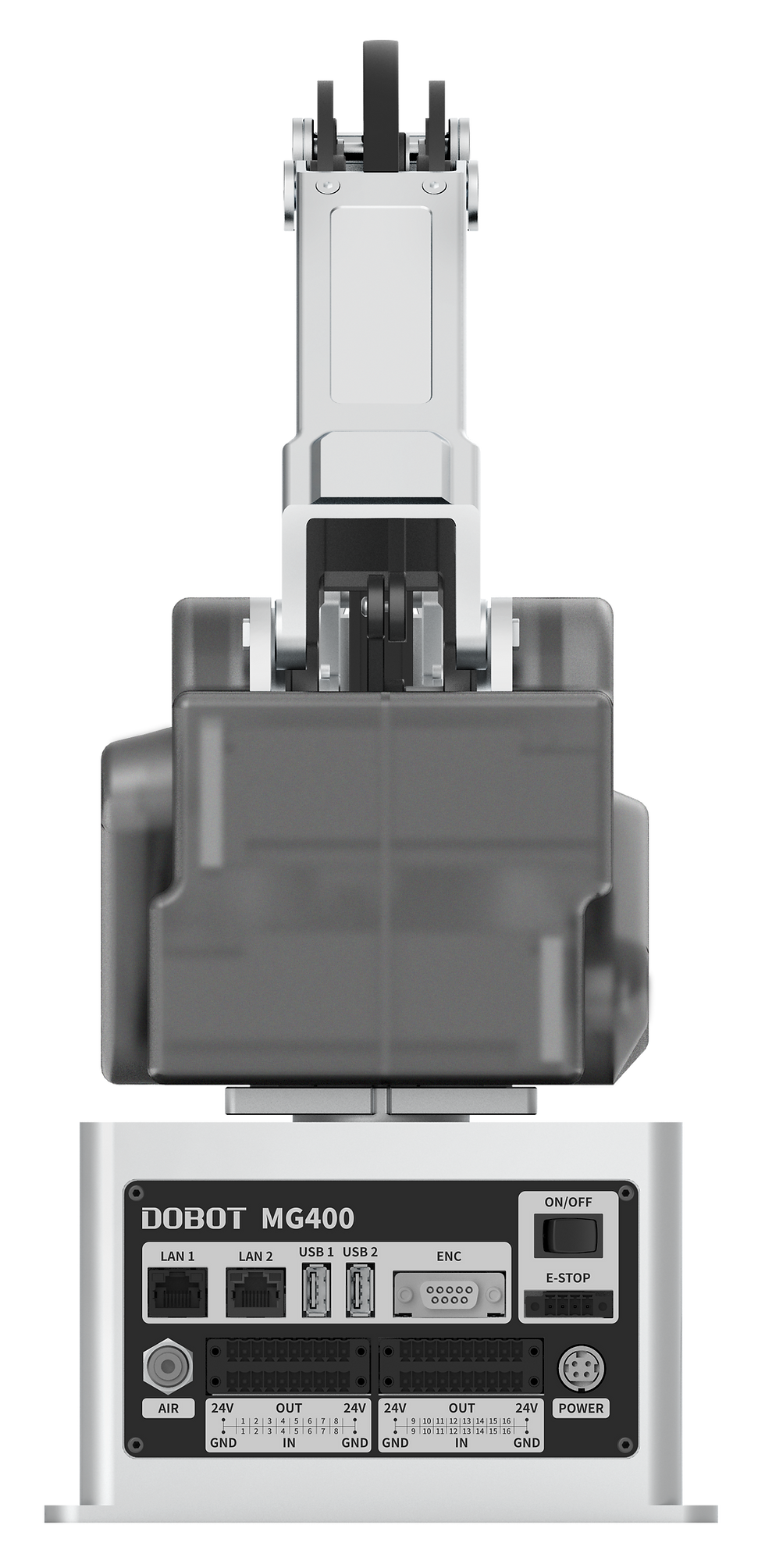

Dobot MG400

  • Number of axes  4
    Payload 500g (max 750g)
    Working radius  440 mm
    Repeatability  ±0.05 mm

    Range of Motion

    J1

    ±160°

    Range of Motion

    J2

    25°~85°

    Range of Motion

    J3

    25°~105°

    Range of Motion

    J4

    ±180°

    Maximum joint speed

    J1

    300° /s

    Maximum joint speed

    J2

    300° /s

    Maximum joint speed

    J3

    300° /s

    Maximum joint speed

    J4

    300° /s
    Power 100~240V AC, 50/60 Hz
    Rated Voltage 48V
    Power Consumption 150W
    Communication Interface TCP/IP, Modbus TCP
    Installation Desktop
    Weight 8 kg
    Base Size 190 mm × 190 mm
    Environment 0° ~ 40° C
